Default CV Boots torn again , Outer CV Joint got stuck

OK , i have this posted in another forum , which appears to now be dead ( Suzuki4U )

So this was the second time the outer CV boots have torn since owning the ( 2004 alto ) car in 2013. Now admittedly I had been lazy the first time around and got those stretch boots to fit over the CV , about two years ago , which are known to tare due to elasticity - Which I have found this weekend

So instead this time around I got some non stretch versions and went about removing the first drive drive shaft , cutting off the old boot and cleaning it up . ( Drivers Offside - UK ) . All pretty easy to do ( I could post a guide later maybe?) .

Now here comes the hard part - The outer CV joint was to be removed , (in order to slide the new boot over the shaft) , however it took me about 1 hour of whacking with ( gradually heavier hammers ) hammers , starting with a rubber one .

I had the drive shaft ( Offside/ Drivers UK ) put into a vice and continued to hit . Now I have heard from mechanics that a one to a few hits should release it . However as hitting it gently was not getting me results , I had resorted to a heavy 2 lb iron club hammer, even then it was not coming off . Finally I decided that I would probably need to replace the whole CV joint anyway , so I hit it with all my might and BAM it comes off :roll:

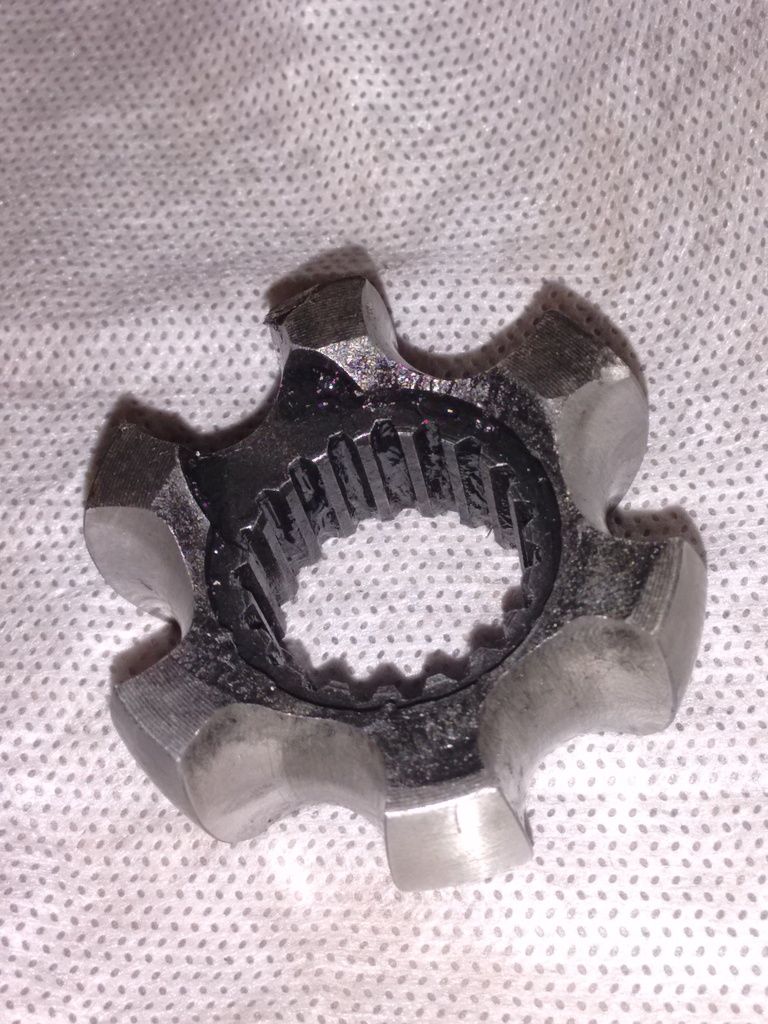

Unfortunately the drive cog which holds the bearings had fractured and pieces of it came off , so I will need to replace that. [img][/img]

I did find a replacement CV bearing on India Ebay to ship to UK SUZUKI SJ413 SJ410 CV JOINT OUTER BALL BEARING WITH RACE CAGE & DRIVE COG SIERRA | eBay

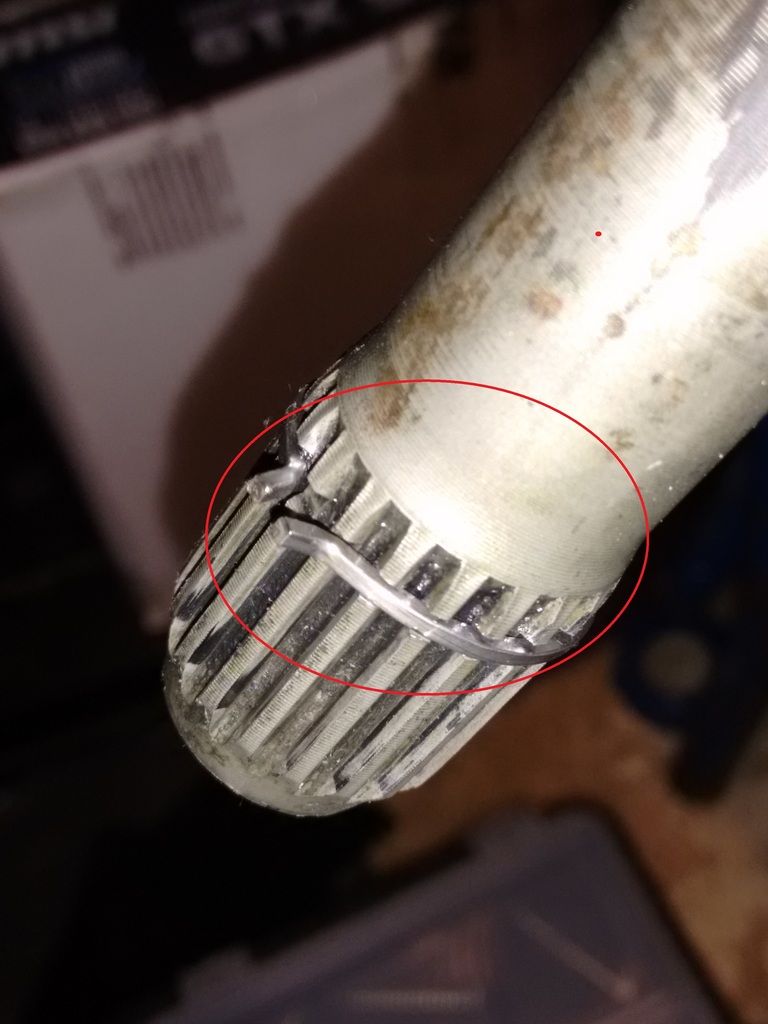

Question is : should it have been that difficult to remove the Outer CV joint ? What other way is there to remove it ? Should I have removed the snap ring on the CV spline first , if so how ? I cant honestly see how the snap-ring mates with the CV joint or makes difference when removing . looking closely at the outer Driveshaft spline ( see pictured , cv joint removed ) there is a groove for a snap-ring , however this is on the inside of the spline which suggests it is there to keep the CV Drive cog from moving up onto the inside?


[img][/img]

What's more the manual shows a Circlip on the the end of the spline , which :
For one you cannot access due to the CV cup covering it
Secondly there appears to be no other groove

See here

[IMG][/IMG]



Where else can I get CV joint bearings ? I did not want to wait two weeks for delivery

Last edited by 90Ninety; 03-27-2016 at 03:55 PM.
90Ninety is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 03-27-2016, 04:09 PM   #2 (permalink)
Member

Join Date: Dec 2013
Posts: 35
Gallery: 0
90Ninety is on a distinguished road
Default CV Removal

Perhaps I should have got a blowtorch on it before hand ?
90Ninety is offline   Reply With Quote Quick reply to this message
Old 03-27-2016, 05:10 PM   #3 (permalink)
Veteran

Darrell.'s Avatar

Join Date: Jun 2014
Location: UK
Posts: 4,932
Gallery: 0
Darrell. is on a distinguished road
Default

Those instructions are for the gearbox end of the shaft.
Your pic look the wheel end that Suzuki often say to replace the shaft complete.
However they can be hammered apart and replaced.
I would assume when changing just the boots that both slide on from the gearbox end.
__________________
2005 Grand Vitara MT 1600se.
Darrell. is offline   Reply With Quote Quick reply to this message

Old 03-27-2016, 05:25 PM   #4 (permalink)
Veteran

Darrell.'s Avatar

Join Date: Jun 2014
Location: UK
Posts: 4,932
Gallery: 0
Darrell. is on a distinguished road
Default

Do you not use something like this for the outer CV joint

SUZUKI ALTO 1.1 ABS CV JOINT (BRAND NEW) 03 ONWARDS | eBay
__________________
2005 Grand Vitara MT 1600se.
Darrell. is offline   Reply With Quote Quick reply to this message
Old 03-27-2016, 05:49 PM   #5 (permalink)
Veteran

Darrell.'s Avatar

Join Date: Jun 2014
Location: UK
Posts: 4,932
Gallery: 0
Darrell. is on a distinguished road
Default

I think brute force is how you get the wheel end apart, probably ruining the original snap ring, but a kit comes with a new one.

__________________
2005 Grand Vitara MT 1600se.

Last edited by Darrell.; 03-27-2016 at 05:51 PM.
Darrell. is offline   Reply With Quote Quick reply to this message
Old 03-28-2016, 07:14 AM   #6 (permalink)
Member

Join Date: Dec 2013
Posts: 35
Gallery: 0
90Ninety is on a distinguished road
Default

Quote:
Originally Posted by Darrell. View Post
Do you not use something like this for the outer CV joint

SUZUKI ALTO 1.1 ABS CV JOINT (BRAND NEW) 03 ONWARDS | eBay

Yeah it definitely appears to be the CV joint outer cup , I have asked them if the bearing is included , still awaiting for a reply . Even with this part however there appears to be no snap ring . There is no outer spline groove for a snap ring to fit

Manual shows removal of the cv outer cup I think ? But it appears the CV bearing is still in place some how as shown here . When I removed the outer cup the whole bearing came with it . Even then it was a challenge getting the bearing out

I am questioning if the bearing is supposed to come out of the outer CV cup , or if it is sold as a complete part . Manual suggests the cup comes off and the bearings stay on the spline - [IMG][/IMG]

It would make sense if it came in a complete part but, manual seems to suggest otherwise and the bearings can also be found separately as shown here [IMG][/IMG]
90Ninety is offline   Reply With Quote Quick reply to this message
Old 03-28-2016, 07:41 AM   #7 (permalink)
Veteran

Darrell.'s Avatar

Join Date: Jun 2014
Location: UK
Posts: 4,932
Gallery: 0
Darrell. is on a distinguished road
Default

The outer cv is a complete part. The diagrams show only the gearbox/diff end.
It states not to disassemble the outer cv but a hammer sorts that out as you have found out.
__________________
2005 Grand Vitara MT 1600se.
Darrell. is offline   Reply With Quote Quick reply to this message
Old 03-28-2016, 07:58 AM   #8 (permalink)
Member

Join Date: Dec 2013
Posts: 35
Gallery: 0
90Ninety is on a distinguished road
Default

Quote:
Originally Posted by Darrell. View Post
Do you not use something like this for the outer CV joint

SUZUKI ALTO 1.1 ABS CV JOINT (BRAND NEW) 03 ONWARDS | eBay
If this product does include the bearing , is the price not suspiciously cheap ?

The equivalent Europarts product is more than double the price
90Ninety is offline   Reply With Quote Quick reply to this message
Old 03-28-2016, 08:03 AM   #9 (permalink)
Member

Join Date: Dec 2013
Posts: 35
Gallery: 0
90Ninety is on a distinguished road
Default

Quote:
Originally Posted by Darrell. View Post
The outer cv is a complete part. The diagrams show only the gearbox/diff end.
It states not to disassemble the outer cv but a hammer sorts that out as you have found out.
Hmm , so in hindsight ( after reading manual ) It is recommended to have disassembled the inner Diff side , so that the replacement boot could slide on from the diff side - as opposed from the wheel side ?

Dammit It seems the consensus ( youtube) is , to remove the wheel side bearing to replace CV boots

Last edited by 90Ninety; 03-28-2016 at 08:06 AM.
90Ninety is offline   Reply With Quote Quick reply to this message
Old 03-28-2016, 08:17 AM   #10 (permalink)
Veteran

Darrell.'s Avatar

Join Date: Jun 2014
Location: UK
Posts: 4,932
Gallery: 0
Darrell. is on a distinguished road
Default

Quote:
Originally Posted by 90Ninety View Post
If this product does include the bearing , is the price not suspiciously cheap ?

The equivalent Europarts product is more than double the price
I agree, it does seem very cheap.
To be honest twice the price at eurocarparts still seems cheap and if you have one local, no postage and any problems are easily sorted.

One thing I did notice is I expected the snap ring to not have the 90 degree bends on the end. Did the old one have them or maybe the photo used is a generic one and not the actual part.
